Rack Mount Kit for Barracuda F12, F80 and F18

RM-BC-T2:

All rack mounts are subject to the availability of given stocks and can vary significantly
based on the timing and the size of the order.

The RM-BC-T2 gives you the ability to mount your Barracuda in a 19" rack. The kit is tailored specifically for the listed models to guarantee a perfect fit. In addition, the connections are brought to the front for easy access.

Assembly will take about 5 minutes. Simply slide your Barracuda device in the kit, place the retainers and connect the supplied cables to the keystones.

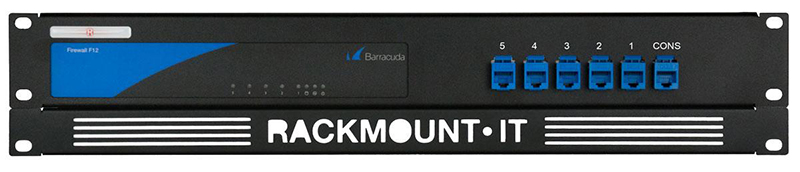

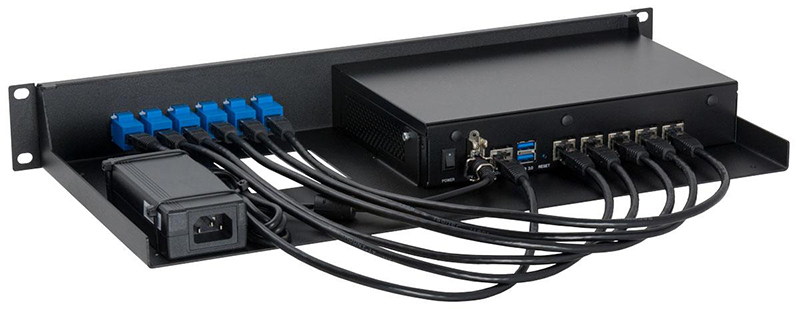

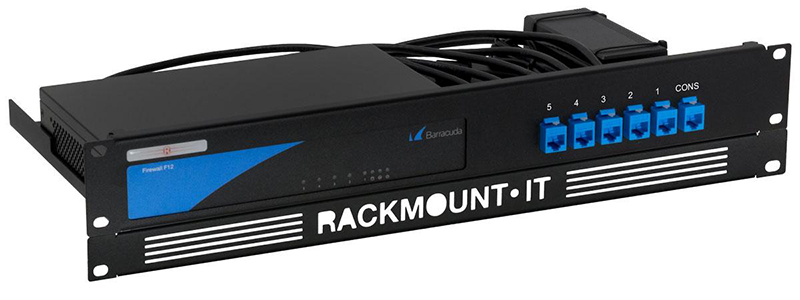

Image Views:

Specifications
Manufacturer	Rackmount.IT
Model	Barracuda
For Use	Barracuda F12 Barracuda F80 Rev. B
Color	RAL 9005 Jet Black
Height	1.3U 2U with the supplied front plate
Dimensions (height x width x depth)	2.32 in. x 18.98 in. x 8.54 in. (59 x 482 x 217 mm)
Number of connections brought to the front	6
Console port to the front	Yes
Cables	6x 0.5m cables
Couplers	6x RJ45 couplers
What's in the box	1x BC-Rack + RJ45 couplers 1x Rackmount.IT front plate Cables Assembly materials Installation guide

Download the RM-BC-T2 Datasheet (PDF).
